How to Properly Use a Miter Gauge

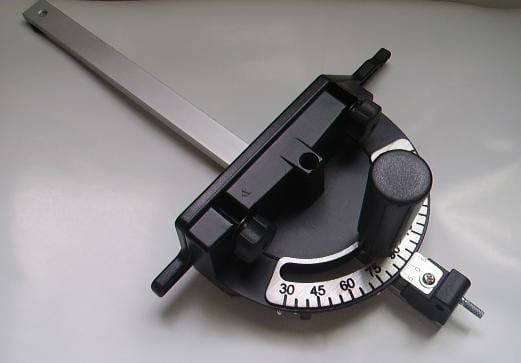

Image Source: http://www.woodking.com/0629-miter%20gauge%201.JPG
Is your wood cutting skills mediocre? Or did you feel tired of spending too much energy just to cut woods properly?
Alas! There are many existing devices and tools, such as Miter Gauge, today that will answer your daily problems. This device is primarily used for an efficient and effective way to cut woods.
Cutting of woods is one of the most crucial parts in all construction process. However, cutting woods with a mere table saw and band saw has always been a problem since time immemorial, hence, the Milter Gauge was invented.
In addition, one of the most challenging parts in construction is the method to produce boards with exact dimensions. Truth be told, but without proper tools, it is very hard to produce such output. With the aid of Miter Gauge, the ability to produce boards with accurate dimensions is increased. And with a proper training and knowledge, an individual would be able to make such feat with ease.
The Miter Gauge is a tool primarily used in order to hold work pieces. In addition, the Miter gauge is characterized by a long and thin guide. This part is the one that provides support and guides the miter gauge to the blade. On top of this, a half-moon shaped device was connected to the guide. With the use of a locking mechanism, the half-shaped device can be locked to any angle between -45 degrees and 45 degrees with its pivot at the connection point.
The invention of this tool makes our life easier and more convenient. But knowing that it exists is enough, we must learn on how to use it properly. Below is some information regarding the proper use or how to use the Milter Gauge properly.
Uses of the Miter Gauge
This article will be providing you some of the methods involving the proper way of using a Miter Gauge. Specifically, this article will be introducing you some steps on how to create precise square cuts, a 45-degrees miter cut, crosscut, and multiple and identical cuts.
Before you start doing anything, make sure that you prepare the following materials:
- Table Saw
- Cordless Drill
- Clamps
- 45-degree Drafting Triangle
- Lumber
Read More: How To's on Woodworking Tools [List 1]
- How to Use Saw Horses Safely
- How to Use the Honing Guide Board the Right Way
- How to Use Levels for Woodworking
- What is a Rip Fence and How to Use It
- This Is How You Use A Bench Grinder – Tips For Woodworkers
- How to Use a Claw Hammer the Right Way
- How to Properly Use a Miter Gauge
- Master the Jointer – How to Use Guide
- How to Operate a Power Drill for Beginners
- Understanding Workbenches for Woodworking - How to Use Them
- How to Use Calipers the Right Way
- How to Properly Use a Surface Planer
- How to Use a Sliding Bevel
- Tips on How to Use a Tape Measure and Other Measuring Device for Woodworking
- How to Use a Compound Miter Saw – The Basics
- How to Use Metal Detectors for Embedded Nails
If you want to try experiencing it, you may opt to try it even in any kind of scrap lumber.
Making Some Accurate Square Cuts
Step 1: Aligning of board with your fence
This method primarily starts by marking the board or the lumber for the length. After which you can now align the part with mark with the end of your extension fence.

Image Source: https://cdn2.tmbi.com/TFH/Step-By-Step/display/FH06NOV_CROSCU_07.JPG
Step 2: Cutting of the lumber or board
After you align it with the fence, you may now start cutting it. The proper way of cutting is by holding the lumber or wood against the fence. You can also try pushing the board past the blade of the saw.

Image Source: https://cdn2.tmbi.com/TFH/Step-By-Step/display/FH06NOV_CROSCU_08.JPG
Step 3: Removing the cutoff part or piece
After cutting the board, you may now put away the board from the saw blade.

Source: https://cdn2.tmbi.com/TFH/Step-By-Step/display/FH06NOV_CROSCU_09.JPG
The secret in making a precise square cut primarily lies on the positioning and marking. It is important that you mark the point exactly and positioned it firmly while being cut. On the other hand, another way is by rough-cutting the boards that you need longer than the desired length. You may do it using a miter or a circular saw. You must take note that it is somehow very hard to cut boards that are more than 4 feet long. By lowering or raising the blade changes the thickness of the piece, you may try adjusting the blade until it is already 1/8 higher in comparison with the thickness of the board.
After positioning the end of the board with the extension fence’s end will make cutting much easier since the blade will most likely be shaved. Always be vigilant to recut the factory ends since they are very seldom to be perfectly square. Then, you can try holding the board against the fence to make cutting the board easier. After cutting each board you may slide the board in opposite direction from the blade. Then, you must turn off the saw before you try to remove the piece to cut.
Lastly, you may mark the exact length and polish the rough-cut piece of board.

MUST SEE: Make 16,000 Projects With Step By Step Plans
Ted's Woodworking Plans contains complete instructions from start to finish, leaving absolutely no guesswork. Here is what you get:
- Step-By-Step Instructions
- Cutting & Materials List
- Detailed Schematics
- Views From All Angles
- Suitable For Beginners & Professionals
Read More: How To's on Woodworking Tools [List 2]
- How to Use a Feather Board with Woodworking Tools
- How to Use a Drill Press For Woodworking
- How to Use a Shop-Vac in your Woodworking Shop
- How to Use a Layout Square
- Learn How to Use a Hand Saw Correctly
- Everything you Need to Know About Band Saws – How to Use One
- How to Use a Sabre Saw
- Screwdriver Basics – How to Use a Screwdriver Correctly in Woodworking
- How to Use a Block Plane for Beginners
- How to Use a Circular Saw – Tips and Techniques
- How to Use Clamps for Woodworking
- The Ultimate Guide to Moisture Meter and How You Use Them for Woodworking
- Why Do You Need A Tool Storage System – How To Use It Properly
- How to Use a Router – Beginning Woodworking
- How to Use Hand Planes
- How To Use a Dremel to Carve Wood
Making an Accurate 45-degree Miter Cut
Step 1: Setting of you Miter Gauge to 45 degrees
You can try raising your blade before you set the miter gauge to an angle of 45 degrees. You must use a drafting square for easy and precise marking. Then, you can now mount the extension fence to your miter gauge.

Source: https://cdn2.tmbi.com/TFH/Step-By-Step/display/FH06NOV_CROSCU_10.JPG
Step 2: Cutting of board or lumber
After you mark and position the board, you must hold it strong enough against the fence. Then, you may now try pushing the board through the blade in order to cut it.

Source: https://cdn2.tmbi.com/TFH/Step-By-Step/display/FH06NOV_CROSCU_11.JPG
One of the easiest tasks that involved the use of miter gauge is crosscutting. You can start this process by primarily setting first the miter gauge to 45 degrees. Usually, since it is easier to crosscut, professionals commonly make miter cuts first before they make square cuts. This technique is said to be easier and more accurate.
Since this process requires an extreme accuracy, you may try cutting the square picture frame into two pieces. Then, by checking whether it is perfectly fit together or not would dictate its accuracy. Try to become more specific and vigilant in the difference between the angle since it would affect the output of your work.
Making Multiple and Identical Cuts
Step 1: Attaching to a stop block to the extension fence
You may start to cut the board to the desired length. Then, you must align the one end to the end of the fence. You can also clamp a stop block, usually an angled stop block, to the fence. Pushing the board against the stop block will make the cut splendid.

Source: https://cdn2.tmbi.com/TFH/Step-By-Step/display/FH06NOV_CROSCU_15.JPG
Step 2: Attaching to a stop block to the other (secondary) fence
After you make the first cut, you may now start preparing the second one. Clamping the stop block at one end of the secondary fence would be a good start. Then, you adjust the positioning and location of the secondary fence. After which clamping it with the extension fence before cutting would be a good idea.

Source: https://cdn2.tmbi.com/TFH/Step-By-Step/display/FH06NOV_CROSCU_16.JPG
Learning to build the cabinet requires the need to produce multiple and identical cuts. The trick in this process involved the creation of the first cut at its desired length. With the use of stop block, you will be able to produce and create the other blocks having identical length.
Read More: How To's on Woodworking Tools [List 3]
- How to Use a Wood Chisel
- How to Use a Random Orbital Sander
- How to Use a Belt Sander
- How to Use a Palm Sander
- How to Use a Table Saw
- How to Use a Wood Chisel
- How To Use Chalk Paint On Wood
- How To Use Wood Filler
- How to Use Wood Stain
- How To Use A Wood Burning Tool
- How To Use A Wood Router For Beginners
- How To Use Wood Putty
- How To Use Bondo Body Filler On Wood
- Woodworking Tips – Utility Knife Care and Use
- Woodworking Tips For Using Radial Arm Saw
- Woodworking Jigs – Techniques for Woodworkers
For short boards, specifically, those boards that are less than 18 inches, using a longer extension fence would be a good idea. You can use a stop block by clamping it to the fence, then cut a partial angle at your stop block. This is needed to stop the saw dust from proliferating between the board and the block. It is highly advisable that you avoid any sawdust buildup since primarily it would cause inaccuracy in the dimensions.
For longer boards, it would be unwise and impractical to use very long extension fence. In contrast, by utilizing the clamp to attach the secondary fence with the boards and the stop block with the fence’s end would give the trick for a good output. You may opt to use an extension fence that is long and thick enough to accommodate the secondary fence via a clamp. An extension fence with a dimension of 1-1/2-in. x 3/4-in. would be a good choice to clamp with your secondary fence.
Conclusion
The main purpose of innovation is to provide more convenience to the users. the inventions of many tools, such as the Miter Gauge, made our lives easier and more convenient. Construction is one of the important processes in our industry. Of course, at the most basic sense, cutting of woods is the most valuable process. Cutting of woods is easy, but to be able to cut to the desired dimensions is very challenging. It requires intense concentration and effort to make this feat. However, with the aid of Miter Gauge, we now speak of entirely different situations.
Learning the proper way of utilizing the Miter Gauge will make our lives easier. We need not exert too much effort, just the necessary knowledge on how to use it would suffice. Since board are the building blocks of a building or furniture, it is important that we made them accurately.
This article primarily introduces the proper ways on how to use the Miter Gauge such as for cutting accurate square pieces or miter pieces and cutting multiple and identical pieces.
Without the proper experience, an individual may find it hard to accomplish these task, however, with the use of Miter Gauge it is not impossible. On the contrast, an experienced person may find it too convenient to do this task with the use of Miter Gauge.
Did you find the article helpful? In what way did the article aid you? You may express your opinions by commenting below.
References:
https://www.familyhandyman.com/tools/table-saws/how-to-use-a-table-saw-cross-cutting/tools-materials
https://www.thespruce.com/miter-gauge-square-angled-cross-cutting-3537017
